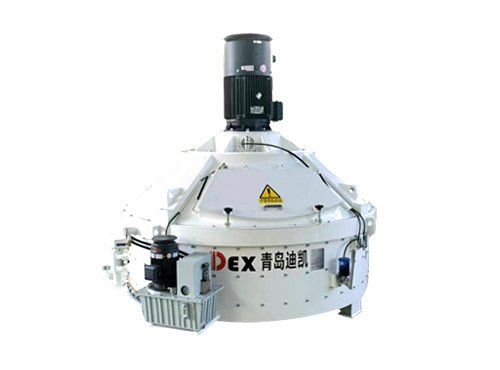

DMPR High-speed Planetary Mixer
1. The DMPR high-speed planetary mixer is special designed for special material distribution and high homogeneous mixing
2. The high performance R series gearbox unit warranty 5 years has strong power and the mixing speed can reach 400~500RPM.
3. The unique designed structure is reliable, durable and with low maintenance.
4. Optimized design of the mixing facility sharply reduced the material splashing, which is easy for cleaning.
5. According to different materials and working condition, the blades and liners can be customized, high-chromium alloy, tungsten carbide , HARDOX, hard facing materials, stainless steel, polyurethane, ceramics and etc.
Options
Item | DMPR | 250 | 330 | 500 | 750 |
Input Volume | L | 375 | 500 | 750 | 1125 |
Feeding Capacity | Kg | 600 | 790 | 1200 | 1800 |
Output Volume | L | 250 | 330 | 500 | 750 |
Mixing Power | Kw | 18.5 | 22 | 30 | 45 |
Mixing Star*Mixing Blade | Qty. | 1*2 | 1*2 | 1*2 | 1*3 |
Side Scraper/Discharge Scraper | Qty. | 1/1 | 1/1 | 1/1 | 1/1 |
Discharge Power | Kw | 2.2 | 2.2 | 2.2 | 2.2 |
Weight | Kg | 1700 | 2500 | 2800 | 4100 |
Note: Technical data may change due to technical process. Subject to modification without notice.
