top quality planetary concrete mixer, precast mixer, block mixer, UHPC mixer, refractory mixer

(1)

Products

Product Details
Features

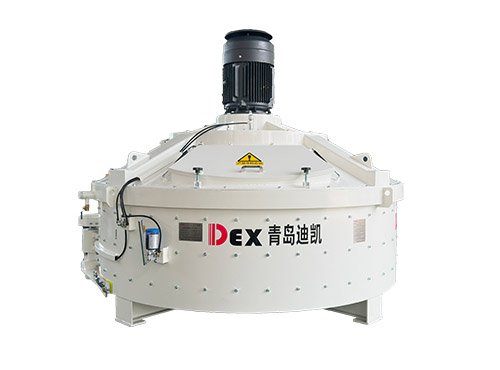

1. The DEX MP planetary mixer with vertical shafts allow the rapid mixing of all types of quality concrete (dry, semi-dry and plastic).The great versatility of the DEX MP mixer enables it to be used not only in the production of concrete, but also in the mixing of materials for the production of glass, ceramics, refractory/castable and etc.

2. The gearbox unit (warranty 5 years), specially designed for a balanced distribution of power to the various mixing device, ensures a low-noise rotation without backlash even under severe working conditions. Compared the traditional gearbox, this unit takes less space, and the maintenance space can be enlarged 30%

3. Equipped with a mechanical coupling and a hydraulic coupling(option),which can protect the transmission devices from overloads and impacts.

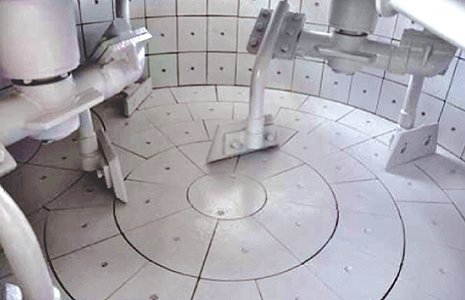

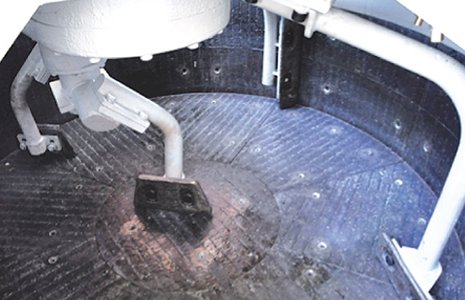

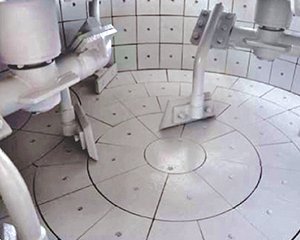

4. According to different materials and working condition, the blades and liners can be customized,  high-chromium alloy, tungsten carbide , HARDOX, hard facing materials, stainless steel, polyurethane, ceramics and etc.

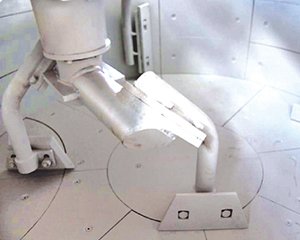

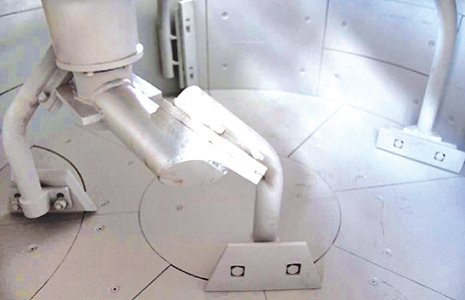

Special designed mixing facility makes the mixing faster, more homogenous and no material heaped.

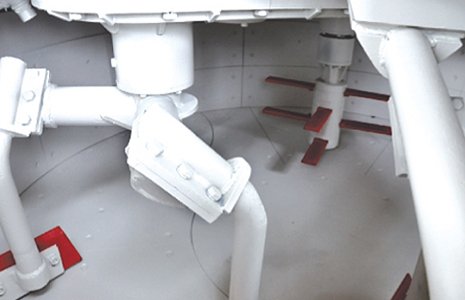

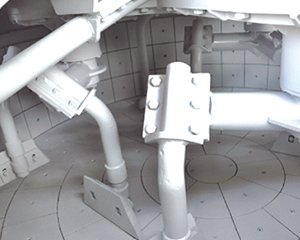

Various arrangement and materials of the mixing device



Options

Mixing Locus Diagrams

This diagrams show the perfect mixing action of the DEX planetary mixer from 6 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars’ action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.

Technical Parameter

Item

DMP

50

100

150

250

330

500

750

Input Volume

L

75

150

225

375

500

750

1125

Feeding Capacity

Kg

120

240

360

600

790

1200

1800

Output Volume

L

50

100

150

250

330

500

750

Mixing Power

Kw

4

5.5

7.5

11

15

18.5

30

Mixing Star*Mixing Blade

Qty.

1*2

1*2

1*2

1*2

1*2

1*2

1*3

Side Scraper/Discharge Scraper

Qty.

1/-

1/-

1/1

1/1

1/1

1/1

1/1

Discharge Power

Kw

Pneumatic Discharge

2.2

2.2

2.2

Weight

Kg

500

850

1300

1500

2200

2500

3500


Item

DMP

1000

1250

1500

2000

2500

3000

4000

Input Volume

L

1500

1875

2250

3000

3750

4500

6000

Feeding Capacity

Kg

2400

3000

3600

4800

6000

7200

9600

Output Volume

L

1000

1250

1500

2000

2500

3000

4000

Mixing Power

Kw

37

45

55

75

90

110

160

Mixing Star*Mixing Blade

Qty.

2*2

2*2

2*2

3*2

3*3

3*3

3*3

Side Scraper/Discharge Scraper

Qty.

1/1

1/1

1/1

1/2

1/2

1/2

1/2

Discharge Power

Kw

2.2

2.2

2.2

3

3

3

3

Weight

Kg

5500

6000

6500

9300

10500

11000

16500

Note: Technical data may change due to technical process. Subject to modification without notice.
