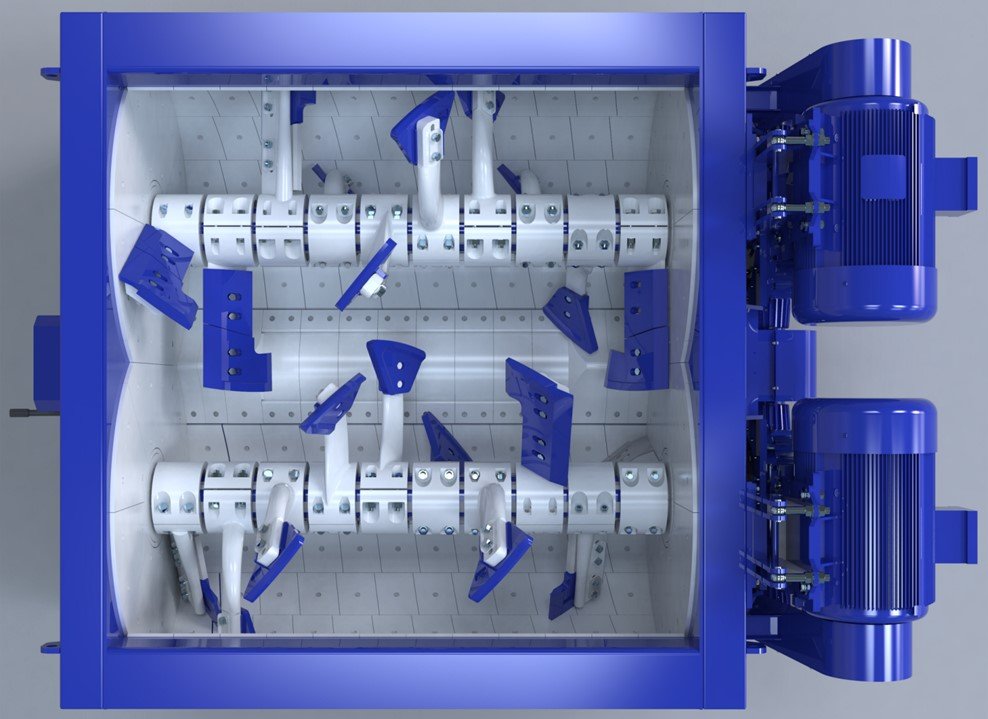

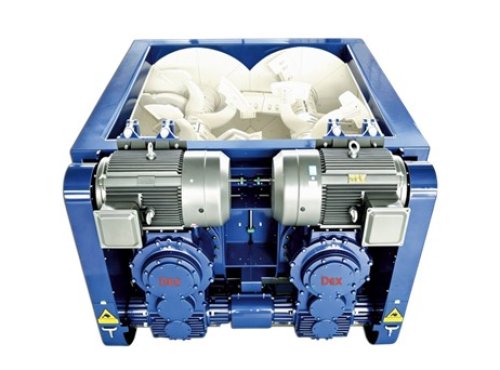

DMTS-H Dam Work Mixer
Specially designed for the production of dam concrete, with a maximum aggregate size of up to 180mm;
The mixing arm is made of alloy cast steel, and the mixing blades are designed to be thickened, ensuring high strength and high wear resistance.
The adoption of a heavy-duty hardened gear reducer ensures high load capacity and strong shock resistance.
An optional fluid coupling is available, which is particularly suitable for long-term stable and reliable operation under working conditions with severe changes in mixing loads.
Model | DMTS-H | 3000 | 3500 | 4000 | 4500 | 5000 | 6000 | 7000 | 8000 |
Input Volume | L | 4500 | 5250 | 6000 | 6750 | 7500 | 9000 | 10500 | 12000 |
Input Capacity | Kg | 7200 | 8400 | 9600 | 10800 | 12000 | 14400 | 16800 | 19200 |
Output Volume | L | 3000 | 3500 | 4000 | 4500 | 5000 | 6000 | 7000 | 8000 |
Mixing Power | Kw | 2*55 | 2*55 | 2*75 | 2*75 | 2*90 | 2*110 | 2*132 | 2*160 |
Discharging Power | Kw | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Weight | Kg | 11000 | 11800 | 12800 | 13500 | 17000 | 19000 | 21500 | 23500 |
Remark: Technical data may change due to technical progress. Subject to modification without notice.
