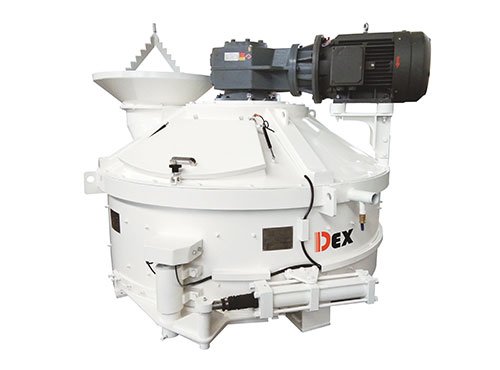

DMPH Heavy-load Planetary Mixer
1. The DMPH heavy-load planetary mixer is special designed for heavy load mixing, which can be easily handled the mixing of UHPC, GRC high performance concrete and heavy loaded refractories.
2. Thanks to the high performance H series gearbox unit (warranty 5 years), the mixer has heavy load and strong power.
3. Fast mixing speed and high homogeneous result.
4. According to different materials and working condition, the blades and liners can be customized, high-chromium alloy, tungsten carbide , HARDOX, hard facing materials, stainless steel, polyurethane, ceramics and etc.
Options
This diagrams show the perfect mixing action of the DEX planetary mixer from 6 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars’ action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
Item | DMPH | 330 | 500 | 750 | 1000 | 1500 | 2000 |
Input Volume | L | 500 | 750 | 1125 | 1500 | 2250 | 3000 |
Feeding Capacity | Kg | 790 | 1200 | 1800 | 2400 | 3600 | 4800 |
Output Volume | L | 330 | 500 | 750 | 1000 | 1500 | 2000 |
Mixing Power | Kw | 22/30 | 30/37 | 37/45 | 45/55 | 55/75 | 75/90 |
Mixing Star*Mixing Blade | Qty. | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 |
Side Scraper/Discharge Scraper | Qty. | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/2 |
Discharge Power | Kw | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
Weight | Kg | 2200 | 3100 | 4300 | 6800 | 8000 | 10500 |
Note: Technical data may change due to technical process. Subject to modification without notice.
