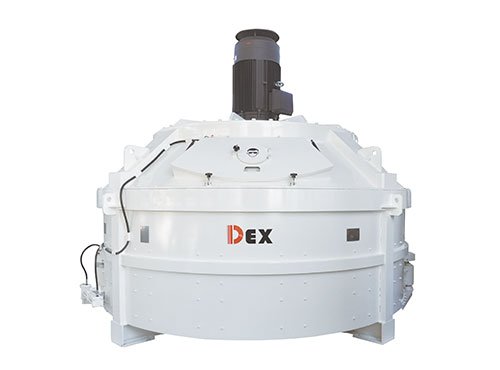

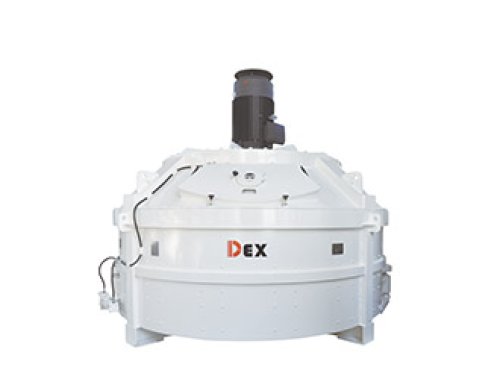

DMPM Muller Planetary Mixer
1. The DMPM muller planetary mixer is combined the advantage of planetary mixing and muller grinding. It has the advantage of high efficient grinding, steady performance and lower energy consumption, which is widely used in the fields of construction material, refractory, ceramics, chemical, foundry and etc.
2. Thanks to the high performance M series gearbox unit warranty 5 years, the mixer has strong power, high transmission efficiency and low energy consumption.
3. The unique designed structure is reliable, durable and with low maintenance.
4. The automatic temperature controlled heating system option can be equipped in the mixer.
Item | DMPM | 750 | 1000 | 1500 | 2000 | 3000 | 4000 |
Feeding Volume | L | 750 | 1000 | 1500 | 2000 | 3000 | 4000 |
Feeding Capacity | Kg | 750 | 1000 | 1500 | 2000 | 3000 | 4000 |
Mixing Power | Kw | 18.5/22 | 22/30 | 37/45 | 45/55 | 75/90 | 90/110 |
Roller Weight | Kg | 850×2 | 950×2 | 1350×2 | 1850×2 | 2050×2 | 3000×2 |
Mixing Star*Mixing Blade | Qty. | 2*2 | 2*3 | 2*3 | 2*3 | 2*3 | 2*3 |
Side Scraper/Discharge Scraper | Qty. | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 |
Discharge Power | Kw | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 |
Weight | Kg | 15500 | 17000 | 20000 | 22000 | 25000 | 28000 |
Note: Technical data may change due to technical process. Subject to modification without notice.
